PIPELINE EQUIPMENT SPECS

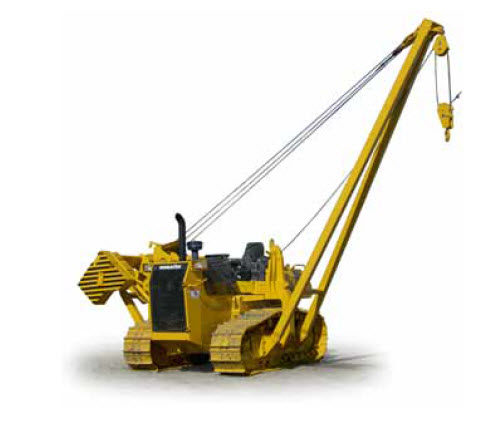

M550C

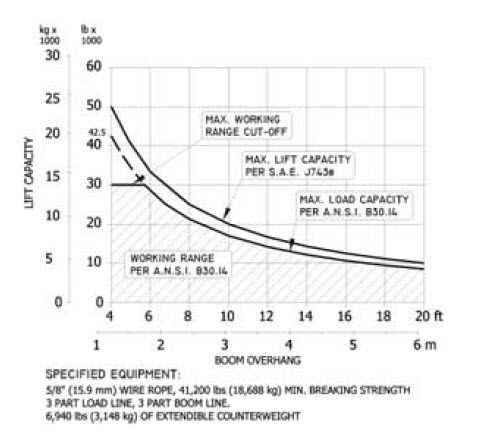

Lifting Capacity

• Maximum Lift: 50,000 lb (22,680 kg)*
• Maximum Load: 42,500 lb (19,278 kg)*
• Maximum Working Load: 30,000 lb (13,608 kg)*

*@ 4 ft overhang

Boom and Blocks

• Standard Boom: 20 ft (6.1 m)
• Boom Line Parts: 3
• Load Line Parts: 3
• Typical Hook Speed (HI/LOW): 45/23 ft/min(13.7/7 m/min)

Hydraulic System

• Directional Control Valve: 3-Section, Load Sense, Pressure Compensated w/ Pilot Controls
• Maximum Operating Pressure: 3,000 psi (207 bar)
• Maximum Allowable Flow: 45 gpm (170 l/min)

WINCHES

Boom Winch

• Planetary, single-speed, dual brake system
• Wire rope installed: 150 ft (45.7 m)
• Max. cable capacity: 368 ft (112 m)
• Wire Rope Diameter: 5/8 in (16 mm)*

Load Winch

• Planetary, two-speed, dual brake system
• Wire rope installed: 150 ft (45.7 m)
• Max. cable capacity: 368 ft (112 m)
• Wire Rope Diameter: 5/8 in (16 mm)*

* Maximum breaking strength: 41,200 lb (18,688 kg)

Weights

• Removable counterweight segments: 6 @ 896 lb (406 kg) each
• Total extendible counterweight (segments and frames): 6,940 lb (3,148 kg)
• Total sideboom attachment weight: 15,000 lb (6,804 kg)

Features

• Tubular A-Frame boom engineered for exceptional support at maximum lift capacity and easy detachment.
• Three-lever hydraulic control system allows simultaneous control of load and boom functions. The controls are easy to operate and require minimal operator training.
• Hydraulic boom stop automatically prevents system over travel and damage to boom.
• System employs tractor’s existing hydraulic pump, filter and reservoir for convenience of replacement parts and maintenance.
• Sideboom features quick release hinge pins for easy boom removal and maintenance.
• Hydraulically operated, four-bar linkage counterweight system adds maximum stability and lifting capacity. Low, compact design provides balanced weight distribution for optimum operating control and excellent visibility.
• Optional multi-axis, hydraulic joystick control.
• Optional remote hydraulic pilot controls.

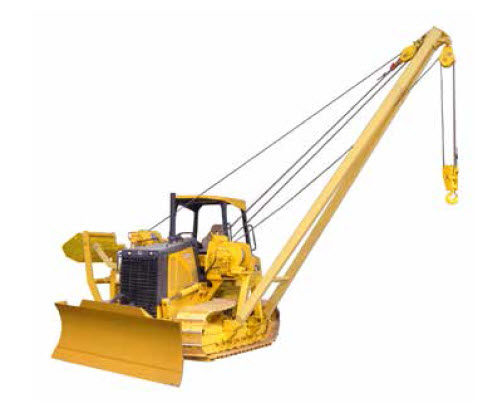

M540C

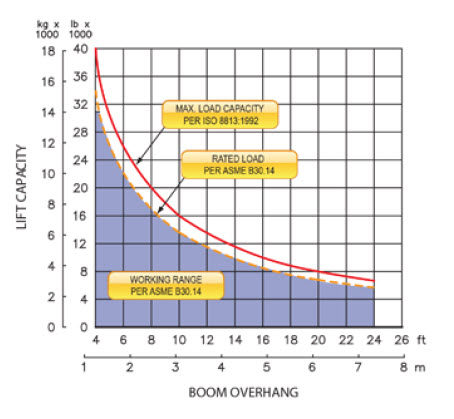

Lifting Capacity

• Maximum Lift: 40,000 lb (18,144 kg)*
• Maximum Load: 34,000 lb (15,422 kg)*
• Maximum Working Load: 30,000 lb (13,608 kg)*

*@ 4 ft overhang

Boom and Blocks

• Standard Boom: 20 ft (6.1 m)
• Boom Line Parts: 3
• Load Line Parts: 3
• Typical Hook Speed (HI/LOW): 35/17 ft/min (10.7/5.2 m/min)

Hydraulic System

• Directional Control Valve: 3-Section, open center or load sense, pressure compensated with manual levers
• Maximum Operating Pressure: 3,000 psi (207 bar)
• Maximum Allowable Flow: 40 gpm (151 l/min)

WINCHES

Boom Winch

• Planetary, single-speed, dual brake system
• Wire rope installed: 95 ft (29 m)
• Max. cable capacity: 368 ft (112 m)
• Wire Rope Diameter: 5/8 in (16 mm)*

Load Winch

• Planetary, two-speed, dual brake system, free-fall
• Wire rope installed: 100 ft (30.5 m)
• Max. cable capacity: 368 ft (112 m)
• Wire Rope Diameter: 5/8 in (16 mm)*

* Minimum breaking strength: 41,200 lb (18,688 kg)

Weights

• Counterweight segment: 4,500 lb (2,041 kg) (not removable)
• Total extendible counterweight: 5,300 lb (2,404 kg)
• Total attachment weight: 10,650 lb (4,831 kg)

Features

• Tubular A-Frame boom engineered for exceptional support at maximum lift capacity and easy detachment.
• Three lever hydraulic control system allows simultaneous control of load and boom functions. The controls are easy to operate and require minimal operator training.
• Hydraulic boom stop automatically prevents system over travel and damage to boom.
• System employs tractor’s existing hydraulic pump, filter and reservoir for convenience of replacement parts and maintenance.
• Sideboom features quick release hinge pins for easy boom removal and maintenance.
• Hydraulic oil cooler.
• Sideboom attachment can be used in conjunction with tractor’s original equipment.
• Hydraulically operated, four-bar linkage counterweight system adds maximum stability and lifting capability. Low, compact design provides balanced weight distribution for optimum operating control and excellent visibility. Counterweight segments can be easily removed for shipping.
• Optional boom lengths available.
• Optional multi-axis, hydraulic joystick control.
• Optional remote hydraulic pilot controls.

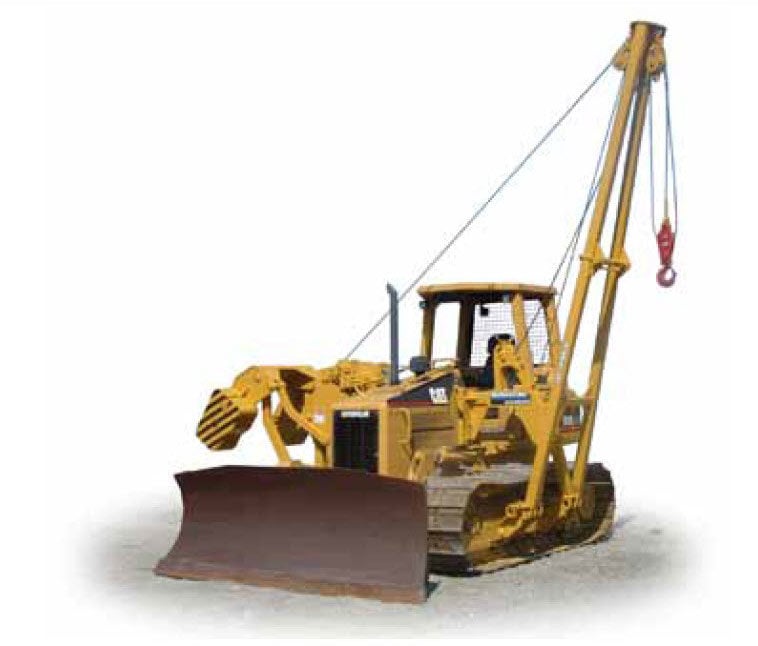

M520C

Lifting Capacity

• Maximum Lift: 20,000 lb (9,072 kg)*
• Maximum Load: 17,000 lb (7,711 kg)*
• Maximum Working Load: 17,000 lb (7,711 kg)*

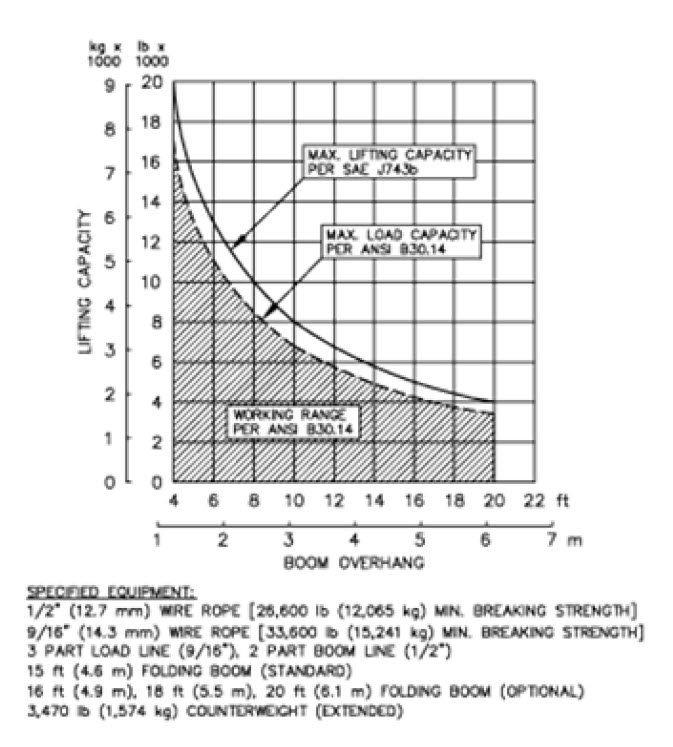

*@ 4 ft overhang

Boom and Blocks

• Standard Boom: 15 ft (4.6 m) (folding)
• Boom Line Parts: 2
• Load Line Parts: 3
• Typical Hook Speed (HI/LOW): 30 ft/min (9.1 m/min)

Hydraulic System

• Directional Control Valve: 3-Section, open center with manual levers
• Maximum Operating Pressure: 3,000 psi (207 bar)
• Maximum Allowable Flow: 24 gpm (91 l/min)

WINCHES

Boom Winch

• Planetary, single speed, dual brake system
• Wire rope installed: 52 ft (15.8 m)
• Max. cable capacity: 102 ft (31.1 m)
• Wire Rope Diameter: 1/2 in (13 mm)**

Load Winch

• Planetary, single speed, dual brake system, Free-fall
• Wire rope installed: 85 ft (25.9 m)
• Max. cable capacity: 320 ft (97.5 m)
• Wire Rope Diameter: 9/16 in (14 mm)*

* Minimum breaking strength: 26,600 lb (12,065 kg)

\

* * Minimum breaking strength: 33,600lb (15,241 kg)

Weights

• Removable counterweight segments: 2 segments @ 1,120 (508 kg) each
• Total extendible counterweight: 3,470 lb (1,574 kg)
• Total sideboom attachment weight: 6,200 lb (2,812 kg)

Features

• Folding boom for ease of transportation.
• Three lever hydraulic control system allows simultaneous control of load and boom functions. The controls are easy to operate and require minimal operator training.
• Hydraulic boom stop automatically prevents system over travel and damage to boom.
• System employs tractor’s existing hydraulic pump, filter and reservoir for convenience of replacement parts and maintenance.
• Sideboom features quick release hinge pins for easy boom removal and maintenance.
• Sideboom attachment can be used in conjunctioinwith tractor’s original equipment.
• Hydraulically operated, four-bar linkage counterweight system adds maximum stability and lifting capability. Low, compact design provides balanced weight distribution for optimum operating control and excellent visibility. Counterweight segments can be easily removed for shipping.
• Optional 2-speed load winch available
• Optional boom lengths available.

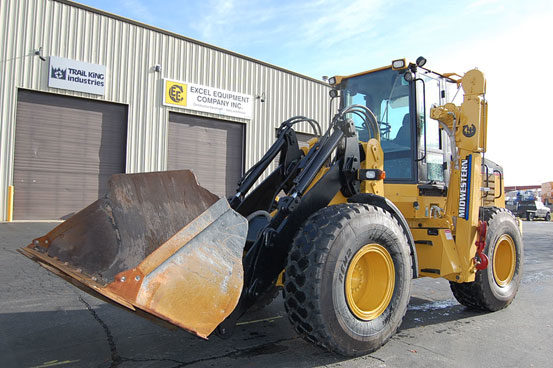

M16R ON A CATERPILLAR IT28G

Lifting Capacity

• Maximum Lift: 16,000 lb.
• Maximum Load: 10,400 lb.
• Maximum Working Load: 10,400 lb.

*@ 4 ft overhang

Boom and Blocks

• Standard Boom: 8-13 ft telescoping
• Load Line Parts: 2
• Typical Hook Speed (HI/LOW): 90 ft/min

Hydraulic System

• Directional Control Valve: 3-Section, open or closed center with cable controls
• Maximum Operating Pressure: 3,500 psi
• Maximum Allowable Flow: 45 gpm

WINCHES

Load Winch

• Plantery, single speed, dual brake system
• Wire rope installed: 50 ft.
• Max. cable capacity: 102 ft.
• Wire Rope Diameter: 1/2 in.

* Minimum breaking strength: 26,600 lb.

Weights

• Removable counterweight segments: 2,500 lb
• Total sideboom attachment weight: 2,000 lb. (counterweight Not included)

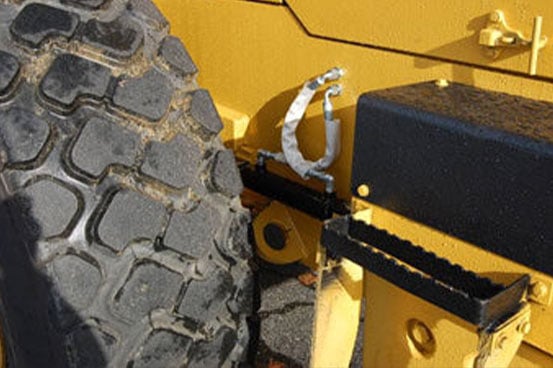

M16R HYDRAULIC TELESCOPIC SIDEBOOM ATTACHMENT

Features

• Tubular telescoping boom engineered for exceptional support at maximum lift capacity and ease of transportation.

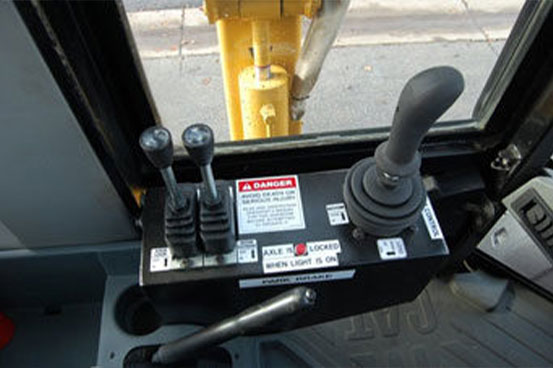

• Three lever cable control system for all sideboom functions. The controls are easy to operate and require minimum operator training.
• System employs tractor’s existing hydraulic pump, filter and reservoir for convenience of replacement parts and maintenance.
• Sideboom attachment can be used in conjunctioin with tractors original equipment.

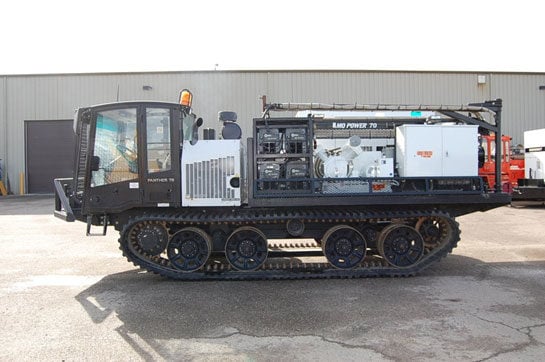

PANTHER T8 TACK-RIG

Engine

Model Cat® C7 ACERT Net power: 225 hp

Shipping Weight: 25,000 lbs.

Width: 102"

Height: 101"

Length: 223"

WELDING DECK SPECIFICATIONS

Utilizing substantial research with industry leaders and technicians, we developed our Tack-Rig with a welding package and has adapted the unit to the PANTHER T8 for on-site pipeline welding.

• Multiquip clean, quiet, reliable power generation is independent of the carrier allowing the unit to be moved without shutting down the power which results in a faster cycle time for welding a joint of pipe.
• A closely governed genset results in tighter frequency control creating higher quality welds.
• Gardner-Denver Electric Air Compressor.
• 4 each Miller XMT 350 Electric Welders.
• Wireless remote controls on all 4 of the Miller XMT welding machines.
• Swing away welding lead boom, to keep welding leads & air hose safe and clean.
• 20,000 lb. Front mounted Hydraulic Winch.

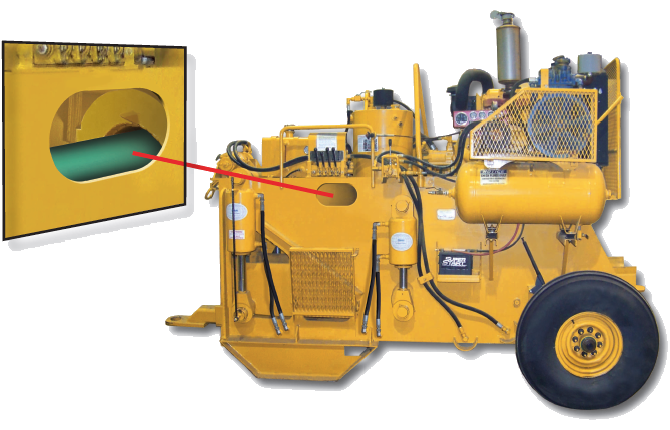

6″ – 20″ EXTENDED HYDRAULIC PIPE BENDING MACHINE

POWER PLANT OPTIONS

Caterpillar C 4.4 diesel engine 99.5 H.P. one year warranty from caterpillar worldwide from date of sale. (unlimited hours)

Deutz model F3L 1011 3-cylinder air cooled Diesel engine (36.2 HP)

Other engine options available at customer’s request (prices may vary)

All original manfacturer’s warranties on the above engine available on request



STANDARD FEATURES

• Removable 3/8 steel liner built in to the stiff back and pin-up. When removed and replaced with a urethan liner, it can be used for bending 20″ thin film coated pipe. A lined bending die would be required.
• Hydrualically driven DP winch with free wheeling drum machine, used to move the pipe through the bending machine.
• 22 gallon hydraulic tank.
• 3000 PSI hydraulic system.
• Hydraulic controls allow one operator complete control of all the machine’s bending functions.
• Machine set up for hydraulic mandrels.
• Indicator rod colibrated so the operator can constantly make uniform bends.
• Simple conversion to another pipe size within the machine range is made by fitting an alternative bending set.
• The machine is designed to bend all grades of currently available API-5L pipe within its range.
• The machine is constructed from T1 steel to give long life.
• The machine may be towed on the right of way by a suitable tractor. The towing eye on the bending machine is attached to the stiffback and can be raised and lowered by actuating the shiftback control when connecting to a towing tractor.
